How to Set Up EAP-TLS with Aruba Instant Access Points

Introduction

In an effort to avoid data breaches through over-the-air credential theft attacks, many organizations are switching to certificate-based authentication for the superior security it provides. Certificates are also beneficial from a user-perspective since they eliminate the need to remember credentials or deal with the inevitable headaches of password-reset policies. Certificates can be configured to stay valid for the lifetime of a device, so users only need to configure their Wi-Fi once per device. Fortunately, you can easily switch to the EAP-TLS, certificate-based authentication, and implement certificates while continuing to use your Aruba IAPs. Just hook up our world-class PKI Services to your existing infrastructure and set up an onboarding SSID so that users can self-enroll for certificates without bothering the IT department. Our PKI Services include Managed Device Gateways as well, so your managed devices can automatically enroll themselves for certificates. Here’s a quick overview of the whole process of setting up your Aruba IAPs for EAP-TLS with SecureW2. Afterwards, we’ll go through the step-by-step guide for configuring your Aruba IAPs for EAP-TLS.

Tech Overview

  1. Configure SecureW2 PKI Services
    • While it’s possible, setting up and maintaining your own PKI is an arduous task. SecureW2’s PKI services can be deployed and integrated into you r existing network infrastructure quickly and easily to fill any gaps you might have (Management Software, CAs, CRL, etc.)
  2. Integrate with your Identity Provider
  3. Enroll Users for Certificates
    • Set up Onboarding SSID for BYOD Self-Service Certificate Enrollment
      • The SecureW2 JoinNow suite is the industry’s best solution for configuring devices for self-enrollment of certificates. Using an Open SSID for onboarding, they are guided through a fool-proof enrollment process.
    • Using Gateway APIs to Auto-Enroll Managed Devices for Certificates
      • Rather than manually enrolling every managed device for a certificate, use our Managed Device Gateway APIs to automatically enroll all your managed devices, through any major MDM software, for machine and/or user certificates.
  4. Configuring the RADIUS (AAA) Server
    • Integrating SecureW2 PKI Services with a RADIUS Server
      • Our PKI services integrate cleanly with all major RADIUS servers. We can work with your existing infrastructure to make implementation totally painless. No RADIUS infrastructure? No problem, SecureW2 comes built in with our Cloud RADIUS. Click here to read more about our RADIUS Solutions.
    • Integrating an Aruba IAP with a RADIUS Server
      • If it’s not already set up, SecureW2 can integrate your RADIUS server with your Aruba IAP. Below are the steps you’ll take.

Configuring Aruba IAP for Certificate Enrollment Onboarding SSID

In the SecureW2 Management Portal:
  1. Click Network Profiles under Device Management
  2. Click View in the function section on the network profile you created
    • Copy the URL of the page that opens for use in the IAP configuration
The link to add to the IAP
  1. Navigate to the Aruba Management Portal
  2. Under the Networks section, click New
  3. In Step 1, enter the same SSID name as you have configured in your Network Profile, set Primary usage to Guest, and click Next
Configuring the Onboarding SSID
  1. Leave Step 2 as Default and click Next
  2. In Step 3, set Splash page type to External and create a New Captive Portal Profile and enter the following information:
    • In the Name Section, enter any name
    • Set Type as RADIUS Authenticator
    • The IP or hostname should be securew2.com
    • In the URL section, paste the path of the URL that was copied earlier (the path is everything that comes after .com in the URL)
    • Enter 443 in the Port Section
    • Leave everything else default, click Ok, and click Next
Connecting the SecureW2 RADIUS with the Onboarding SSID
  1. Set the Access Rules to Role-based
  2. Create a new role by clicking New in the Roles section
  3. To get the necessary information to populate the role, go back to the SecureW2 Management Portal and click Documentation in the General section
  4. Select the SecureW2 JoinNow Deployment Guide
  5. Scroll to the Firewall Rules section and you can find the IPs that need to be entered into the Role Policy

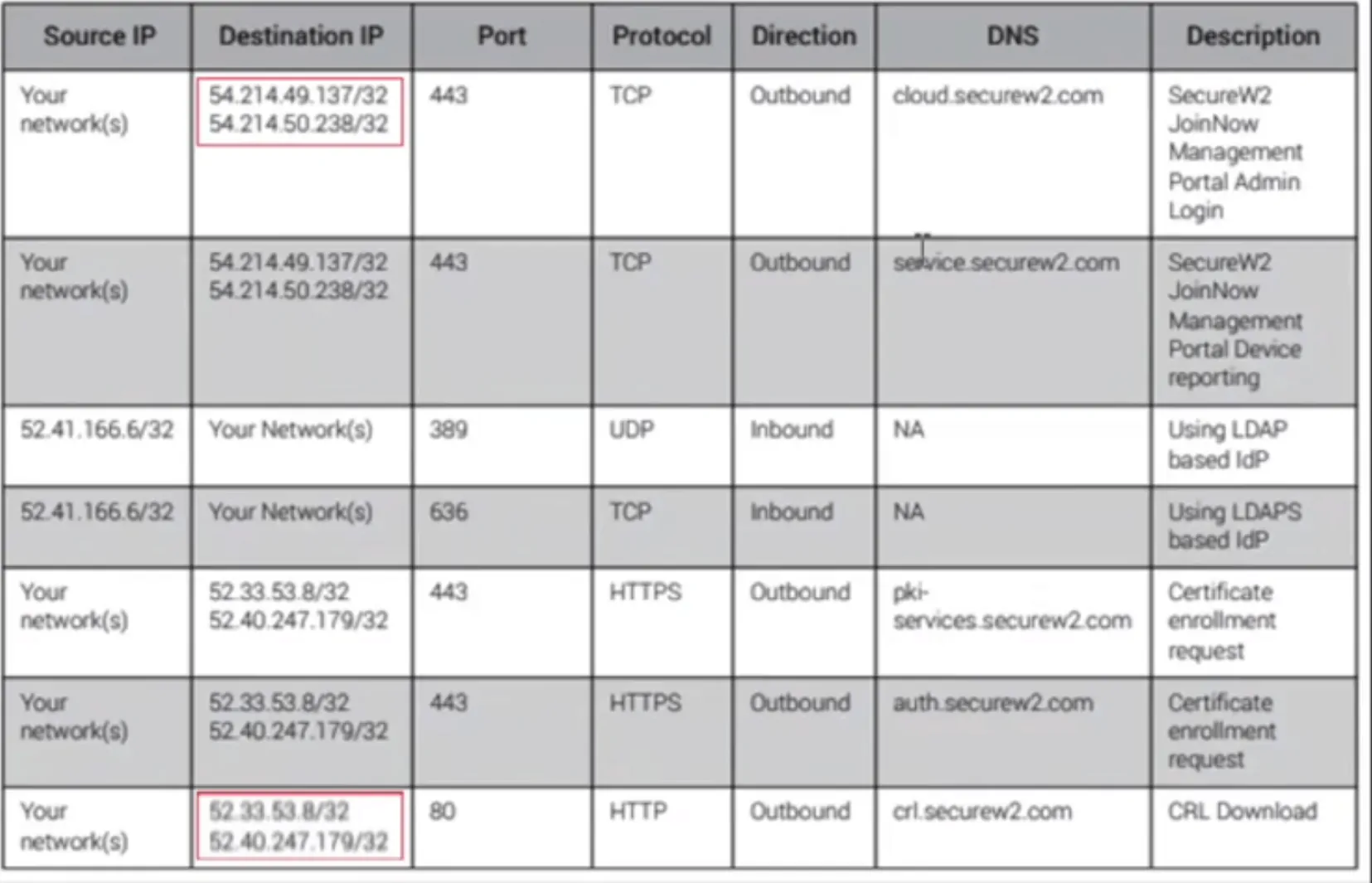

The IP addresses that need to be entered into the new role There are other resources in Section 2.3 Adding the DNS List that should be added to ensure that the onboarding process operates smoothly. This section in the Deployment Guide will walk you through which sections to add
  1. Once you have added the IPs to your Role Policy, go to the Assign pre-authentication role dropdown menu and select the new Role Policy, and click Finish
  2. The network should appear in the Networks section after a few seconds, and you have set up the Onboarding SSID for testing purposes
The new onboarding SSID

Set Up Aruba IAP Secure SSID (RADIUS)

Now that we’ve configured the Onboarding SSID that will enroll users for a certificate, we need to setup the Secure SSID. This SSID needs to be configured for EAP-TLS WPA2-Enterprise Authentication. It also needs to be integrated with a RADIUS server, which in this case will be the SecureW2 Cloud RADIUS.

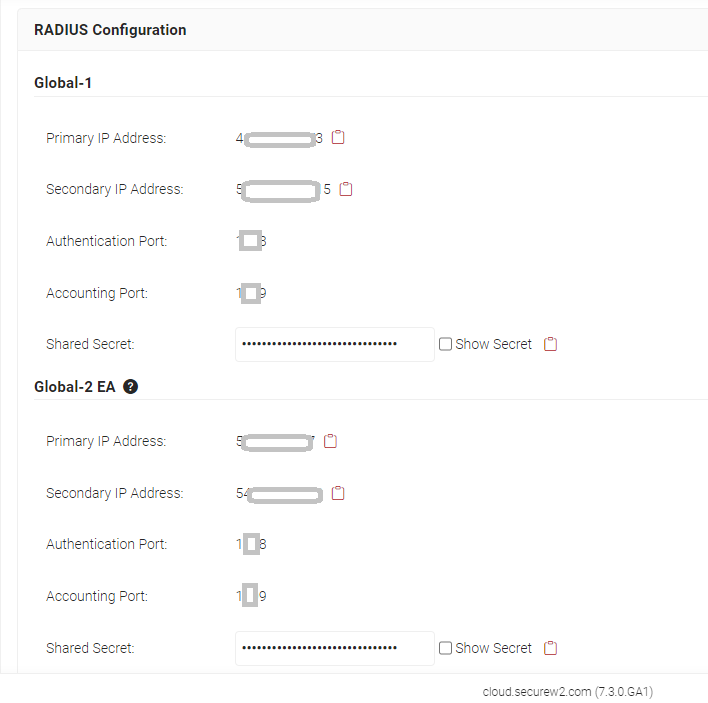

  1. Under AAA Management, click AAA Configuration
    • Here you will see your RADIUS information
  2. Navigate to the Aruba Homepage and click New under Networks
  3. Enter a name for the SSID and keep the primary usage set to Employee, then click Next
  4. Keep VLAN settings as default and click Next
  5. Adjust the Security Level to Enterprise
  6. Select New in the dialog box for Authentication Server 1
Configuring the Secure SSID
  1. Enter a Name for the SSID
  2. Copy the Primary IP Address from the SecureW2 Management Portal and Paste it in the IP Address box
  3. Copy the Port number from the SecureW2 Management Portal and paste it in the Auth port box
  4. Copy the Shared Secret from the SecureW2 Management Portal and paste it in the Shared key box and the Retype key box
  5. Click Ok
Connecting the SecureW2 Cloud RADIUS
  1. Repeat the above steps for Authentication Server 2, but copy the Secondary IP Address from the SecureW2 Management Portal and paste it in the IP Address box
    • Enter the same Port and Shared Secret for Authentication Server 2 and click Ok
  2. Click Next, set the Access Rules as Unrestricted, and click Finish
  3. The new SSID will appear in the Networks section in the Aruba Homepage
It’s that easy. Are you ready to get started? SecureW2 has affordable solutions for organizations of any size and shape. Check out our pricing form here.
